Reinforced Aflex DORSI Ankle Joints for AFOs

Dorsiflexion-assist AFO Ankle Joints

Durable articulated ankle joints designed to provide controlled dorsiflexion assist for walking ankle foot orthoses.

Best for: Walking AFOs where dorsiflexion assistance is required during swing phase.

Not ideal for: Fixed or rigid AFO designs where ankle movement is intentionally restricted.

• Integrated elastic response for functional gait support
• Kevlar fibre reinforcement for durability
• Supplied as a complete, ready-to-fit joint kit

What is it?

The Reinforced Aflex DORSI Joint is an articulated ankle joint system intended for use in ankle foot orthoses (AFOs) that require dorsiflexion assistance. It is engineered to introduce a controlled elastic response at the ankle, encouraging dorsiflexion during gait while allowing natural motion during stance and swing phases.

At rest, the joint positions the orthosis in slight dorsiflexion. This pre-set orientation can help manage foot drop tendencies and prepare the limb for clearance during swing. As the user walks, the joint’s inherent elasticity contributes to dorsiflexion during swing phase, helping to increase toe clearance without relying on rigid mechanical stops alone.

The joint body is reinforced with a Kevlar fibre braid, providing additional structural integrity and resistance to fatigue. This reinforcement supports long-term use in demanding clinical and fabrication environments where durability and consistency are essential.

Who is it for?

This joint system is intended for professional orthotic fabrication and fitting contexts. It is suitable for clinicians and technicians who require a dependable dorsiflexion-assist mechanism within an articulated AFO design.

Typical users include:

• Orthotists and prosthetists fabricating custom walking AFOs
• Orthotic technicians working in fabrication laboratories
• Hospital and NHS in-house orthotic workshops
• Podiatry and MSK clinics offering orthotic intervention
• Universities and training institutions teaching AFO design

What is it used for?

The Reinforced Aflex DORSI Joint is used to introduce dorsiflexion assistance within articulated ankle foot orthoses. It is particularly suited to applications where controlled ankle motion is required rather than complete immobilisation.

Common applications

• Walking AFOs for individuals with reduced active dorsiflexion
• Orthoses designed to support swing phase clearance
• Dynamic AFO designs requiring elastic ankle response
• Custom orthoses where joint hardness is selected to match functional needs

Characteristics

• Elastic dorsiflexion assist rather than rigid mechanical lift
• Slight dorsiflexion positioning at rest
• Kevlar-reinforced construction for strength and longevity
• Available in multiple hardness levels to suit different requirements

How to work with it

The joints are designed to be integrated into thermoplastic or composite AFO shells during fabrication. Moulding dummies are included to support accurate placement and alignment during forming processes.

Posterior stops are supplied to manage range where required, allowing the practitioner to tailor movement limits conservatively.

Expected use timeline

First use

On initial fitting, the joint will position the orthosis in slight dorsiflexion. Users may notice improved toe clearance during swing phase as the elastic response becomes active. As with any articulated orthosis, a short familiarisation period is expected.

Ongoing use

Over weeks of regular walking, the joint is designed to maintain consistent elastic behaviour. The reinforced structure is intended to tolerate repeated loading cycles under normal walking conditions. Periodic inspection during follow-up appointments is recommended to ensure continued appropriate function.

Common problems and how this joint helps

Key benefits

• Supports dorsiflexion during swing without rigid lifting mechanisms
• Provides consistent elastic response through repeated use
• Reinforced construction suitable for demanding clinical settings
• Multiple hardness options allow functional matching to patient needs
• Complete kit simplifies fabrication and fitting processes
• Designed for integration into standard walking AFO designs

Common mistakes to avoid

• Selecting joint hardness without considering patient weight, activity level, and gait pattern
• Assuming the joint replaces the need for appropriate shell design and alignment
• Over-restricting motion with posterior stops without functional justification
• Neglecting routine inspection during follow-up appointments

How to work with the Reinforced Aflex DORSI Joint

1. Confirm the required joint size and hardness based on the orthosis design and user profile.
2. Use the supplied moulding dummies during shell forming to ensure accurate alignment.
3. Integrate the joint into the AFO shell using appropriate fabrication techniques.
4. Install posterior stops if controlled limitation of movement is required.
5. Secure using the supplied stainless steel screws and retaining washer.
6. Inspect alignment and function before final fitting and adjustment.

Technical specifications

Frequently asked questions

Is this joint suitable for all AFO designs?

It is intended for articulated walking AFOs where controlled ankle motion and dorsiflexion assistance are appropriate. It is not designed for rigid or immobilising orthoses.

How do I choose the correct hardness?

Hardness selection should be based on clinical judgement, considering user weight, activity level, and desired elastic response. Softer options allow more movement, while harder options provide greater resistance.

Can the joint be used in paediatric orthoses?

Yes. Child-sized options are available with appropriate dimensions and hardness levels.

How durable is the joint?

The joint is reinforced with Kevlar fibre and tested under demanding conditions. Regular inspection is still recommended as part of routine orthotic care.

Are all fixings included?

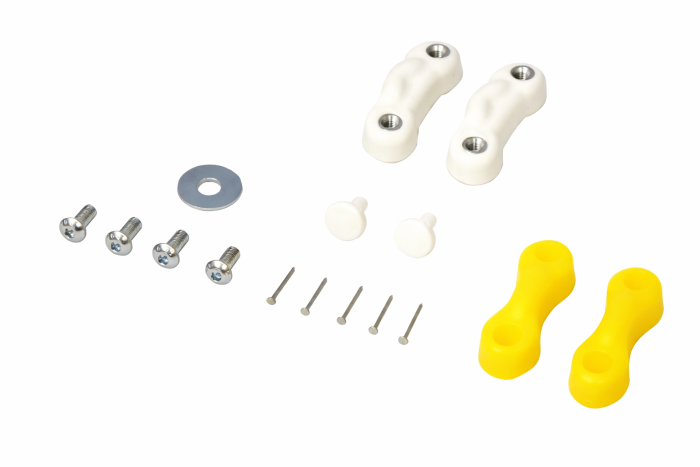

Yes. The kit includes joints, screws, retaining washer, posterior stops, and moulding dummies.

Does it provide active muscle assistance?

No. The joint provides passive elastic dorsiflexion assistance and does not replace active muscle function.

Complementary and pairing suggestions

• Thermoplastic or composite AFO shell materials
• Padding and liner materials for comfort
• Calf straps and fixation systems
• Orthotic finishing and adjustment tools
