EZ Stride Anterior Carbon Fibre AFO

Product Description

Professional Semi-Finished AFO for Orthotics Professionals

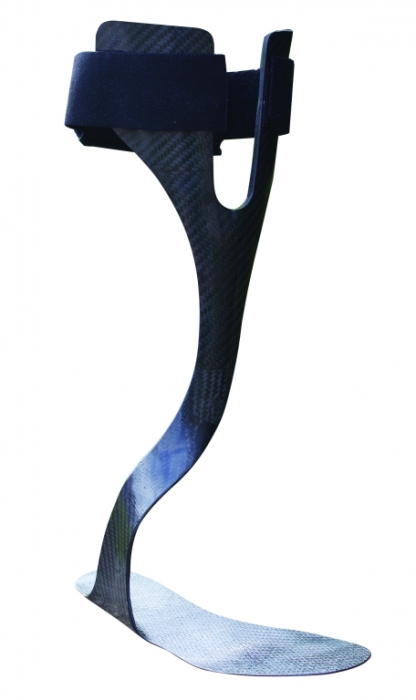

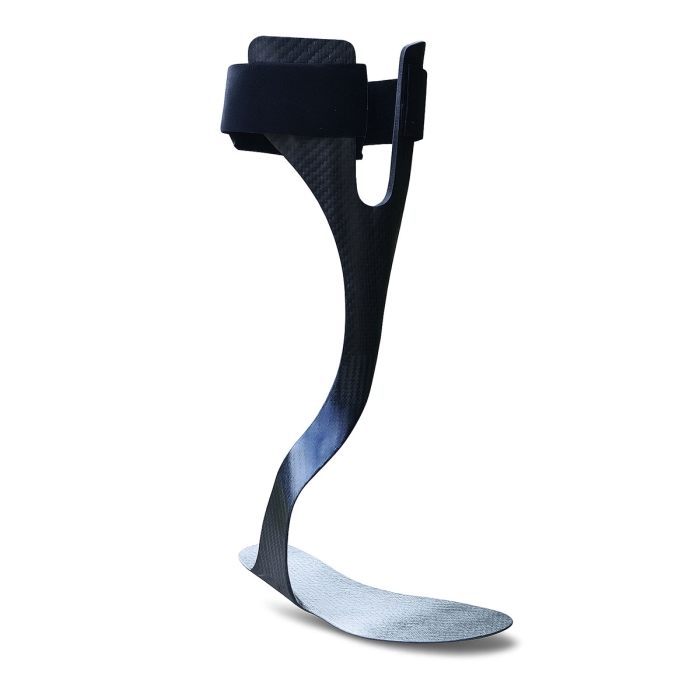

The EZ Stride Carbon Fiber AFO is a dynamic, floor-reaction device which restores biomechanical function to patients with drop foot or ankle instability.

• It is designed to fit inside the shoe, without excessively pushing out the shoe or contacting pressure-sensitive areas.
• It must be customised by a healthcare professional using the fitting protocol described below.

AFO Design Features

• Lateral strut spirals to the front, providing support for patients who pronate (valgus or eversion)
• One-piece design with “Y” front trim line provides relief to the tibia’s tuberosity area
• Flexible calf strap accommodates a wide range of leg sizes
• Structurally reinforced in high-stress areas

Fitting Goals

1. Footplate fits snugly in shoe to prevent migration
2. Strut should not excessively push out shoe
3. Strut should not contact patient

Fitting Protocol

1. With the shoe removed, the patient should don the EZ Stride.
2. Ensure the strut does not contact the patient; maintain at least ¼” gap.
3. Mark the heel and toe ends on the footplate, and also mark the medial edge near the ankle bone.
4. Remove the insole from the shoe and place it on the footplate. Align heel marks and trace around the insole.
5. Trim the footplate to this line. Use a band-saw if removing more than ½”, or a grinder (e.g. belt sander, angle grinder, drill press, Dremel) if less.
6. Caution: Avoid over-grinding the edge opposite the strut — maintaining width helps prevent strut contact.
7. Smooth the trimmed edge using a polishing cone or sanding block (starting with 80 grit, progressing to finer if desired).
8. Test the modified footplate inside the shoe; trim further if needed.
9. Place the shoe’s insole on top of the footplate.
10. Have the patient wear the shoe with EZ Stride. Fasten the calf strap securely.
11. Check that the strut does not contact the patient and that clearances are maintained.
12. If the strut touches the back of the leg, trim the heel end to allow the AFO to slide further into the shoe.

Sold individually.
