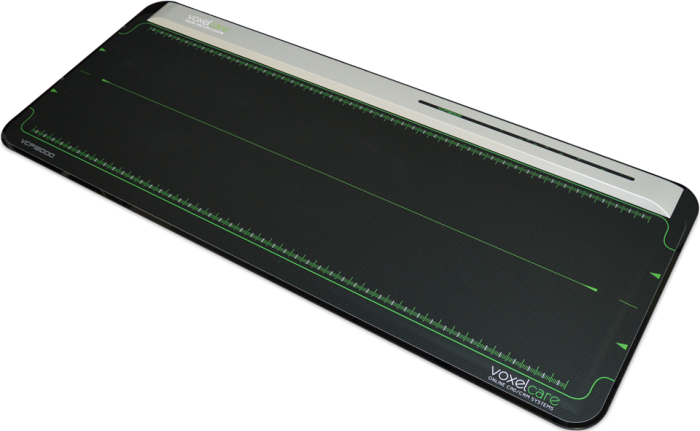

Voxelcare Pressure Plate VCP12000

SKU
VX0026

The 12.288 sensors on VCP12000 pressure sensor plate registers plantar foot pressure at a sampling rate up to 200 images per second during stance, walking, gait, or specific sport activities/movements.

£21,384.00
Product Description

More than pedobarography

The software allows synchronization of measurements with other diagnostic tools. The clinician can visualize simultaneously foot pressure evolution, video images, and link with other medical devices such as EMG, EKG…

Sensors: 12288, 78 x 0.78 mm

Temperature range:From 0°C to +85°C

Pressure range: From 0.4 N to 100 N

Sampling rate: 200 Hz



Unmatched performance and reliability

The experience in the design and manufacturing of resistive sensor technology enables us to provide a state-of-the-art system with an unmatched quality of performance. Additionally, the innovative body of the pressure plate provides a solid, rigid and light structure.



Technical Specs

Dimensions: 1610 x 652 x 30 mm

Weight: 11.8 Kg

Required operating system: Windows 10 OS

Active area: 1500 x 500 mm

thickness: 9 mm
