XT Silverdot Carbon Blanks for Foot Orthotics

Product Description

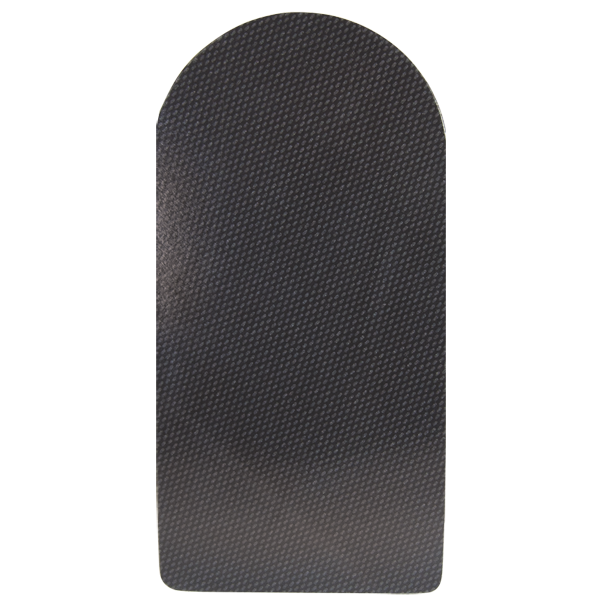

XT Silverdot Carbon Composite Orthotic Blanks
for Foot Orthotic Production

The XT Carbon Composite range of materials are used for moulded ‘functional foot orthotics’ when full control is required. This rigid material is manufactured from carbon fibre composite and polypropylene, which helps provide you with a strong, lightweight and rigid orthotic.

Carbon composites offer a superior alternative to the heavy steel sole plates traditionally used in surgical shoe manufacture.

• Carbon composites offer a range of control in 5 thicknesses - each with own level of flexibility.
• No creep, relaxing or bottoming out.
• Used for deep heel cups needing directional support.
• Can be re-heated and re-moulded
• Easy to machine and finish.

High Perfomance Carbon Composite Blanks

• Composite structure for thinness and high strength
• Unique resin formulated for high resistance to cracking, impact and fatigue
• No creep, relaxing or bottoming out
• Superior recoil and spring characteristics
• Blank sizing allows for deep heel cups and directional rigidity for greater foot control

XT Product Selection Guide

XT EASE FLEX - Ultra thin for comfort and gentle support

XT SEMI FLEX - Very thin, extra degree of comfort and control

XT SEMI RIGID - Thin & light - provides strong support with spring back

XT RIGID - Rigid support - withstands heavy use without cracking

XT ULTRA RIGID -Meets special needs for extreme activities and weight

How to Use

Required Tools: Oven, Vacuum former, cast release liner (Teflon), heat protective gloves.

1. Set the panel on release liner and place in oven at 200ºC (400ºF) for 3-5 minutes.
2. Place the softened panel on mold.
3. Promptly apply vacuum and close the rubber membrane.
4. For deep arches, massage out any wrinkles by hand.
5. After about 1 minute, remove molded insert and trim.
