Full instructions also provided in each box.

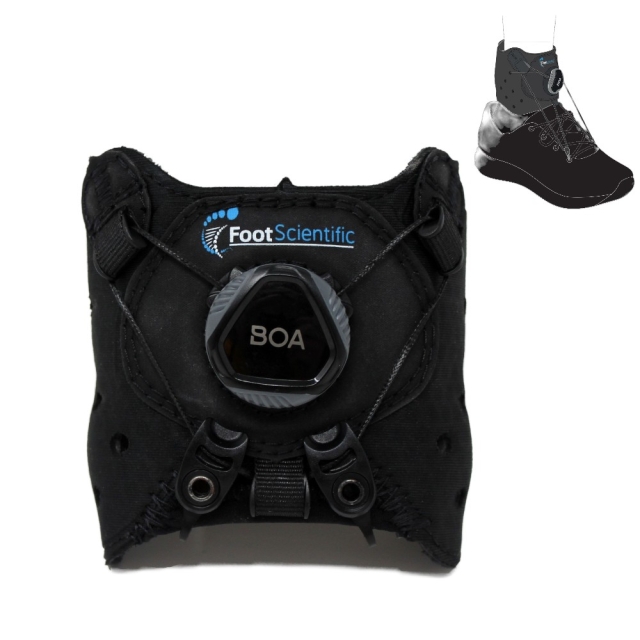

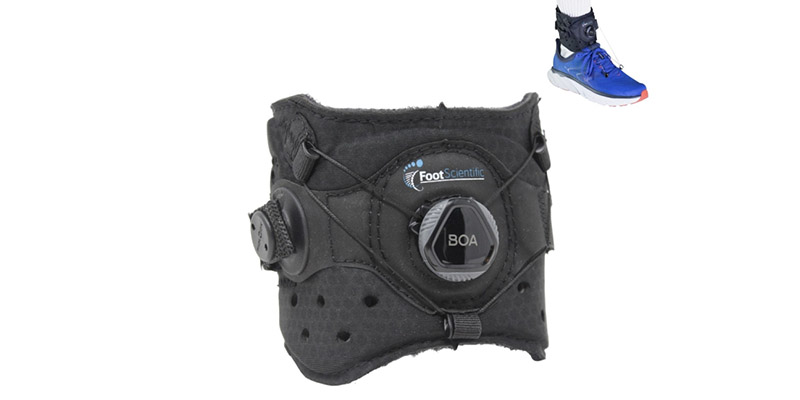

  • Orient the brace on the ankle.
  • Place the Boa center to your foot or shoe.
  • Wrap brace around ankle to test for fit.
  • Trim the brace if desired (not required).
  • Place the Boa center to your foot or shoe.
  • Place the left side first against your leg, then follow with right to secure hook and loop.
  • With hook and loop secure, adjust the buckle and clip it in place.
  • Release Boa by pulling the face of the Boa away from you.
  • Attach hooks to the shoe using existing or created eyelets
  • With the Boa outward, pull a medial and lateral portion of the Spectra cord toward eyelet hooks.
  • Attach the Spectra cord directly to the eyelet hooks.
  • Push the Boa inward until it clicks.
  • Wind the Boa clockwise until the cord is tight and have the lift and angle desired.
  • Adjust as needed.
  • If you feel pressure anywhere, make adjustments in the fit and height of the brace
    around your ankle.

Precautions and Warnings

  • Always use under adult supervision.
  • Keep out of the reach of children.
  • If you have diabetes or you are affected by any circulatory issues seek medical advice before use.
  • If any redness or irritation persists, consult a physician.
  • Cease use if brace causes any discomfort.
  • Consult your doctor if you have any concerns about your health.
  • Check brace for any damages before use.
  • Clean brace before use.
  • Always read the instructions before use.
  • If you experience any pain or discomfort STOP and contact a medical professional immediately.
  • Brace cannot be used for other purposes than described in Instruction for Use

Limitations and Contra-Indications

  • Not for diabetic neuropathy patients whose illness has progressed to lesions and neuronal insensitivity.
  • Not for patients who also have extremely compromised lateral medial muscle strength.
  • Users with severe neurological dysfunction sufficient to significantly impair fine motor skills will need help in putting on the brace.
  • The Elevate Drop Foot Brace is not intended for use when users can’t follow instructions, due to excess movement, inability to read or hear instructions.
  • Intense use of the device may result in chafing or irritation of the skin at the points of contact.
  • Intensive use of the device could lead to muscle fatigue or even tendinitis and/ or muscle
    contractures.

Note: For regular use please contact a medical professional to make sure that this product is suitable for your particular injury. This pack is not suitable for warm use. Do not expose to high temperatures, hot water, oven, microwave or other heating methods.
