Aortha Flex Plastic Sheets

Product Description

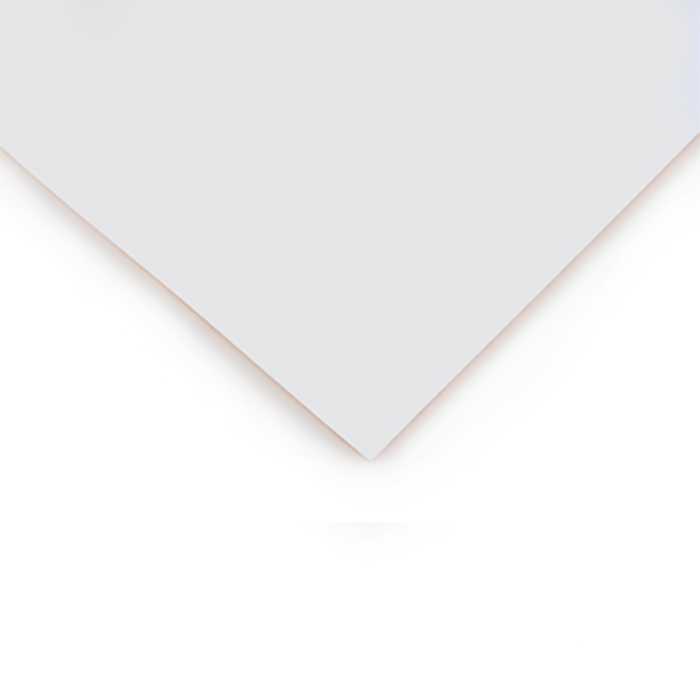

Premium Thermoplastic Sheet for Orthotic & Prosthetic Fabrication

Aortha Flex is a strong plastic sheet. It is made from 76% Low-Density Polyethylene (LDPE) and 24% Ethylene Vinyl Acetate (EVA). This composition delivers exceptional flexibility, durability, and ease of processing, making it ideal for various orthotic and prosthetic applications.

Key Features:

• Exceptional Flexibility: The EVA content provides superior pliability, facilitating intricate molding and shaping.
• High Tear Resistance: Designed to withstand rigorous use without compromising structural integrity.
• Thermoformable: Easily moldable at recommended temperatures between 70°C and 90°C; typical thermoforming temperature is 150°C.
• Transparent Finish: Offers a clear appearance, beneficial for aesthetic and functional assessments.
• Versatile Processing: Can be stitched, riveted, cut, or die-cut to meet specific fabrication requirements.
• Minimal Shrinkage: Ensures dimensional stability during and after processing.

Technical Specifications:

• Density: 0.951 g/cm³ (ASTM D792, ISO 1183)
• Melt Index: 3 g/10 min at 190°C/2.16Kg (ASTM D1238, ISO 1133)
• Melting Point: 73°C (163°F) (ASTM D3418, ISO 3146)
• VICAT Softening Point: 49°C (120°F) (ASTM D1525, ISO 306)
• Hardness: Shore A: 86; Shore D: 35 (ASTM D2240, ISO 868)
• Maximum Processing Temperature: 230°C

Available Sizes:

Sheeting:

• 2000 x 1000mm – Thicknesses: 3mm, 4mm, 5mm

Applications:

• Body Jackets
• Wrist Splints
• Spinal Orthoses
• Neck Braces
• Ankle-Foot Orthoses (AFOs)
• Above-Knee (AK) and Below-Knee (BK) Liner Sockets
