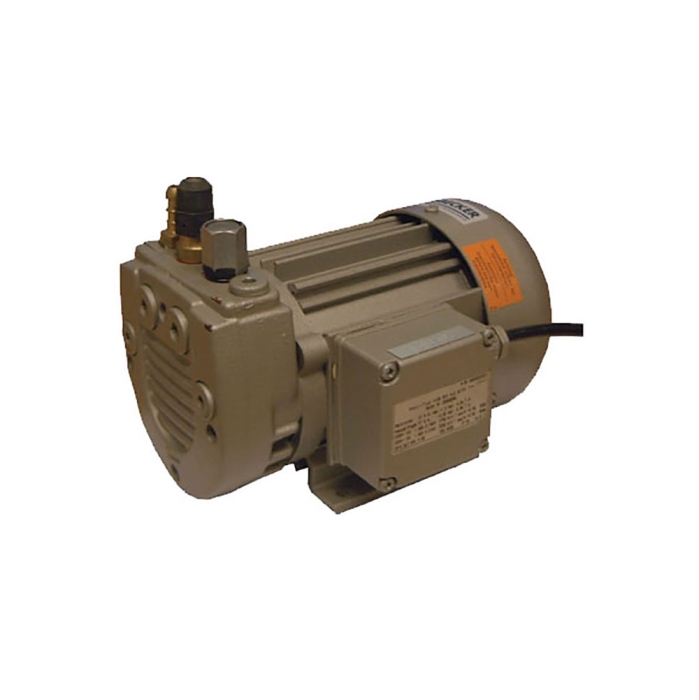

Vacuum Pump VT4.10 incl. Regulating Valve
This series of vacuum pumps are a line of 100% Oil-less, rotary vane. They are designed to operate on a continu- ous basis throughout a pressure range from atmospheric pressure to 25.5 Inches Hg.
Product Description
Each unit is a direct drive pump and is supplied with a TEFC electric motor. Each unit is equipped with an inlet filter, avacuum regulating valve,discharge silencer, and vibration isolators as standard equipment, all of which are an integral part of the vacuum pump.
The VT vacuum pump is ideal for applications where air is the gas and where the discharge must be totally free of oil. Very low maintenance requirements, long vane life, and low noise levels are key features of these pumps.
Vacuum Pump Features:
- 100% Oil-less operation
- Quiet
- Cool operation
- Long vane life
- Inlet filters included
- Discharge silencers
- Direct drive
- Vacuum regulators included
- Minimal maintenance
- Continuous duty rated
The Vacuum Pump VT 4.10 is an oil-free, air-cooled rotary vane vacuum pump
Specification:
• Pump type: Dry-running rotary vane vacuum pump
• Air flow: 10 m³/h at 50 Hz
• Maximum vacuum: 150 mbar absolute
• Motor power: 0.37 kW at 50 Hz
• Noise level: approximately 60 dB(A)
• Weight: approximately 16 kg including motor
• Vacuum connection: G 1/2
• Integrated suction filter
• Integrated vacuum regulating/safety valve
• Integrated blow-off valve
• Vibration-damping feet
• Designed for continuous operation
• Oil-free operation – no oil changes are required
The pump uses self-lubricating carbon vanes, which helps keep routine maintenance relatively low.
Servicing
Regarding consumables, the suction filter can be replaced separately rather than having to purchase the complete service kit.
There is also a complete service kit, which contains the filter cartridge, seals and replacement carbon vanes, but this would generally only be required when carrying out more extensive servicing.
Please contact us.
Technical Data for VTE 1.0:
| Suction | Max. Vacuum | Max. Vacuum | Max. Motor | Weight |
| Air Rate | [mbar abs.] | [mbar rel.] | Capacity [kW] | [kg] |
| 10-12 | 150 / 150 | 850 / -850 | 0.37 / 0.45 | 16 |
