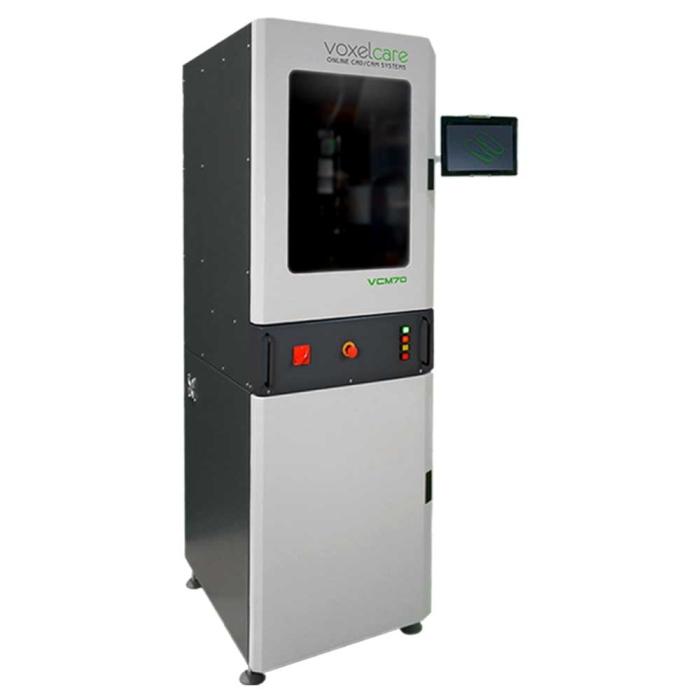

Voxelcare VCM70 CAM Milling Machine

SKU
VX0048
The VCM70 is the best option for those who want to produce EVA foot orthotics in a clinic or shop environment. A fully integrated model with the dust extraction unit contained below and the milling unit enclosed in a compartment to reduce noise, eliminating the need for ear protection.
Voxelcare
GB https://schema.org/MerchantReturnFiniteReturnWindow 14 https://schema.org/ReturnByMail https://schema.org/FreeReturn
GB
5.95 18 GBP
0 1 DAY
1 3 DAY

Contact us for Quotation

Call For Price
2 Day Tracked Delivery
PayPal | Apple Pay | Google Pay
Same Day Despatch - Before 2.30pm
Aftersales Support
Buy | Try | Review = 20% OFF Next Order
ISO 13485 Supplier for Medical Devices
Product Description

Voxelcare VCM70 CAM Milling Machine

The VCM70 is a high-end single-pair milling machine where performance, reliability and accuracy is required. Ideal for professionals that want to start milling EVA foot orthotics in a clinical or shop environment.

The VCM70 is designed so that any user is able to quickly start manufacturing custom insoles. After designing the orthoses in our online CAD software, the design is automatically sent to the CAM which creates the milling files. Simply put the EVA milling block in the machine and hit the green button to start milling

In the base unit a powerful dust extraction unit and vacuum pump (for holding the milling blocks) are integrated. The machine can be controlled from the supplied tablet PC as well as from a computer within the network. The machine is fully integrated within the Voxelcare online CAD/CAM system.

Features & Benefits:

  • Dimensions: 600 x 780 x 1750mm
  • Weight: 270kg
  • Working area: 350 x 300 x 55mm (z-axis)
  • Milling time: Up to 15 min/pair (two sides)
  • Accuracy: 0.01 mm
  • Power supply: 220V, single phase
  • 2-side milling: Mill insoles on both top and bottom side save time in manual grinding and finishing
  • Single pair milling: Suitable for 1 pair of EVA orthotics
  • High quality: Robust internal frame, incl. vacuum table, vacuum pump and dust extraction system
  • High performance motor: Brushless milling motor 1.1 kW, 6000 - 24000 rpm
  • Timesaving: The orthotics come almost finished out of the machine; that saves time in manual finishing
  • Versatile and powerful: Transmissions in all axes of spindles, with ball screw recirculating and stepping motors with encoders
  • Easy to use: Including tablet to control milling machine

The VCM70 Mill is part of the Voxelcare family of Foot Orthotic production solutions. Contact us for more information and a demonstration.
