P&O Infrared Oven

NEW IR Oven For large sheets requiring precise heating control.

Product Description
  • Easy operation by central digital touch panel.
  • Precise thermostat control by measuring the material temperature.
  • Display shows the CURRENT temperature of the material.
  • Timer feature.
  • Ramp feature for slow heating processes (Pre-Preg processing).
  • User-defi ned heating process memory.
  • Graphic trend visualization for heating process control.
  • Optimized heat insulation of the oven housing.
  • Suitable for flat plastics, blister-forming and Pre-Preg.
  • Standard heating selection feature allows you to activate a smalleror larger area of the 18 IR tubes for required coverage.

3 Phase Infrared Oven Benefits:

  • Space saving sliding door for all ovens with roll-about tray.
  • Equipped with an external USB interface for program updates.
  • Energy consumption can be reduced when heating smaller material pieces.
This Infrared-oven is equipped with an optical temperature-sensor, combining the enormous heating-power and a reliable temperature control.

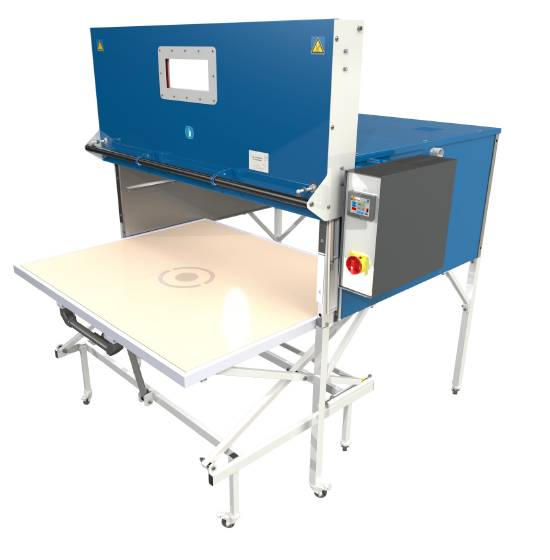

Type: IR1302 - Infrared Oven for the O&P field including movable roll-about tray
Footprint: Approx. 1.5m² / oven housing movable on casters
Dimensions: Outside: W 1595mm - D 1180mm - H 1400mm
Total height with door opened: 1850mm
Inside: W 1300mm - D 1090mm - H 500mm
Roll-about tray: Independent, 4 locking casters, locking gas shock lift adjustment
Effective heating range:  W 1245 x D 1045mm
Lift range: 820mm - 1050mm
Power supply: 400V/50/60Hz/3 Phase/ (16 Amp. CEE) / total capacity 8.5kW
Temperature reading: opto-elektronic IR-measuring unit
Measuring of the material’s surface temperature!
Temperature control:
Digital PID-Controller, infi nitely adjustable from 30°c to 250°c (display in °F available).
SPS controller with 3.5” touch panel, showing SET and CURRENT temperature, timer- and Heating-ramp feature, multi language user interface, software updates available via USB port
Door mechanism:
Space saving vertical movement, gas shock (2x) assisted, ball bearing guided,
Double-pane viewing window
Illumination: 2 x 25 watts
Farbe: Inside stainless steel, Outside structural effect paint blue/light grey RAL 5017/7035.
net: 290kgs
gross: 365kgs (including crate)
