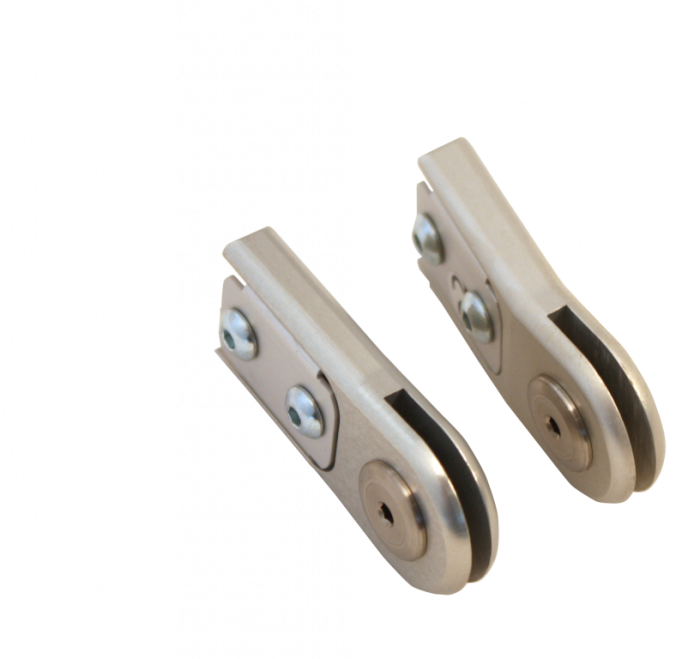

Free Motion Ankle Joints

Can be used with carbon or aluminium uprights, to be screwed and glued with the necessary adhesive.
Product Description

Free Motion Ankle Joints Features:

•Made of light alloy.

• Resistant design.

• The PF2229 and PF2231 pairs of joints come with a spacer allowing you to use either 16mm x 4mm or 18mm x 5mm uprights.


Straight Lateral Joint: A.
Curved Medial Joint: B.



Code Kit Includes Upright Section Recommended Upright Compatible Stirrup
PF2229 A x 2 16mm x 4mm or
18mm x 5mm
PF2575 - Carbon, 16mm x 4mm
PF2585 - Carbon, 16mm x 4mm
PF2589 - Aluminum, 16mm x 4mm
PF2593 - Carbon, 18mm x 5mm
PF2603 - Carbon, 18mm x 5mm
PF2607 - Aluminum, 18mm x 5mm
PF2265
See page 452.
PF2231 A + B
PF2243 A x 2 22mm x 6mm PF2611 - Carbon, 22mm x 6mm
PF2621 - Carbon, 22mm x 6mm
PF2245 A + B PF2625 - Aluminum, 22mm x 6mm
PF2245 A + B
