A useful training guide about how to start with OptoGait (from our american partner Gait Support International).
If you want a short Quick Install Guide please click here. Complete User Manual is here.



2 OptoGait skis (RX and TX)
2 battery cords (1 for each ski)
2 Cameras
2 Tripods
2 White USB cords.
1 Main Cable connecting from OptoGait to the Computer

Download Software


Go to www.optogait.com. Select ‘Support’ in the top right corner. Select ‘Downloads’ on the left side. From there, select ‘Download full version’ and follow the subsequent prompts to install the software.

Main Steps


1.Once software is downloaded, open it to ensure it has uploaded properly
2.From there, turn on both OptoGait skis, make sure the LED strips are facing each other, and look for the green light at the base (interface side) on the inside of the RX (receiver) ski (the first time you turn your skis on, they may need a battery charge-these are the 3 pronged inlets on the interface side of each ski; there should be 2 corresponding cords in your bag). This light, if green, confirms that the skis have been lain down properly and are correlated with one another. If red, make sure both skis are on and try to align them until you get a green light. Also, make sure there is nothing lying between the bars as this could also inhibit a green light.
3.Then, plug in the main cable from your RX ski to the computer. After a few seconds, you should see a popup box that says ‘OptoGait connected’
4.Then, plug in the first camera. At this point, in the software go to ‘utility’ along the top right, and then to ‘basic settings’ in the top left corner. . (While you are in basic settings, observe the second grouping called ‘contact and flight time settings’. Make sure that both minimum options are set to 10 milliseconds (ms). Also observe the units setting and set to US if desired) towards the middle of the page, the 4th section is called ‘video’. In that section, select the drop down menu for video 1 where your Logitech webcam pro 9000 should be located. Select ‘test’ and test the webcam connection. You should be able to see the video feed and have some options available for altering the view. When desired settings are set, select ‘confirm’. If second camera is desired, wait a few seconds then plug in the second camera. Wait a few seconds longer, then select ‘test’. Adjust as desired and confirm. Then, click ‘save’ in the top right corner.

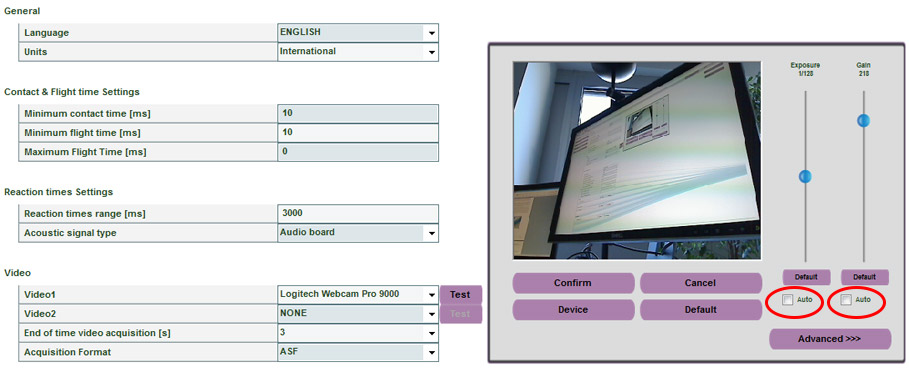

All you need to do is to click the two boxes highlighted that say “auto”. This auto feature corrects the lighting for the cameras and you don’t need to adjust the camera, it does it all for you. However, you may only need to adjust it if there is poor lighting in the room.

5.From here, stay in ‘utility’ and select the ‘OptoGait HW test’ below basic settings. You should see a diagram of your 2 OptoGait skis with the 96 LED’s. Wait a second or two and then select ‘execute’. If sound is activated, you should hear a ding and then step one foot in between the bars. On the computer screen, the LED’s you’ve interrupted should turn from green to red. (It is not necessary to activate all the LED’s, a few will suffice. If nothing appears to happen, try ‘hardware reset’ just below ‘execute’ and then try again.) Then, select stop in the bottom right corner. You will be asked if you want to filter the LED’s you’ve just interrupted...select ‘no’.
6.After this, select ‘back’ in the bottom right corner, and you are now ready to execute a test. The first thing to do here is create a patient. Along the top left of the screen, select ‘patients’ and then ‘insert/modify patient. Select ‘new patient’ and fill in the appropriate data. In order to acquire the patient’s foot length, have the patient place one foot(only) in between the bars and parallel to them. Click acquire foot length and save the data. Save the patient data and move to the next step.
7.For this example, we will assume you are planning to execute a march in place test. There is no preconfigured test for march in place, so you’ll have to create one of your own. To create your own test, go back to ‘test’ and select ‘define/modify tests’ and then select ‘new test’ on the right. Give your test a name and then select ‘tapping test’ on the test type drag down menu. The start type will be a status change and the start will be inside the area. The starting foot can be the right foot (you can either
a) have the person not march until you click ‘start’ and then begin with their right leg, or
b) have the person already marching and click ‘start’ when the left foot is coming down so that the first full reading will be the right foot going up). The stop type options are simple. An ‘external impulse’ stop demands that the computer user press FnF4 when stop is desired. This gives you the freedom to stop the test at will, rather than the ‘end of time’ stop, which stops the test automatically for you after a specified amount of time. If you select ‘end of time’, a test length parameter will pop out. Enter your time here and you may then save the test.
8.Select ‘test’ along the top, ‘execute’, select your patient and choose the test you’ve just created from the list, and then get your patient into position. Remember that the march in place test must be done perpendicular to the bars. If parallel, no data will acquire. Then, select ‘execute’ and instruct your patient to start marching with the right leg first; or, get the patient marching and select ‘execute’ when the left foot is about to touch down and the right foot to lift. Depending on your stop type, the test will end after the desired amount of time or when you press FnF4.
9.If you want to execute a jump test rather than a march in place, select the preconfigured ‘squat jump 2 legs 5 jumps’ when you are in the ‘test’, ‘execute’ section. Then perform your 5 jumps after you’ve clicked start in the execution page. Save when finished and locate the test in the results section.
