Carbon & Glassfibre Unidirectional Sheets

SKU
TA2614

Use bars & other rigid parts.

Incl. VAT Exl. VAT
£717.41 £597.84
Algeos UK
GB https://schema.org/MerchantReturnFiniteReturnWindow 14 https://schema.org/ReturnByMail https://schema.org/FreeReturn
GB
5.95 18 GBP
0 1 DAY
1 3 DAY
2 Day Delivery. FREE over £75
PayPal | Apple Pay | Google Pay
Same Day Despatch - Before 2.30pm
Aftersales Support
Buy | Try | Review = 20% OFF Next Order
ISO 13485 Supplier for Medical Devices
Product Description

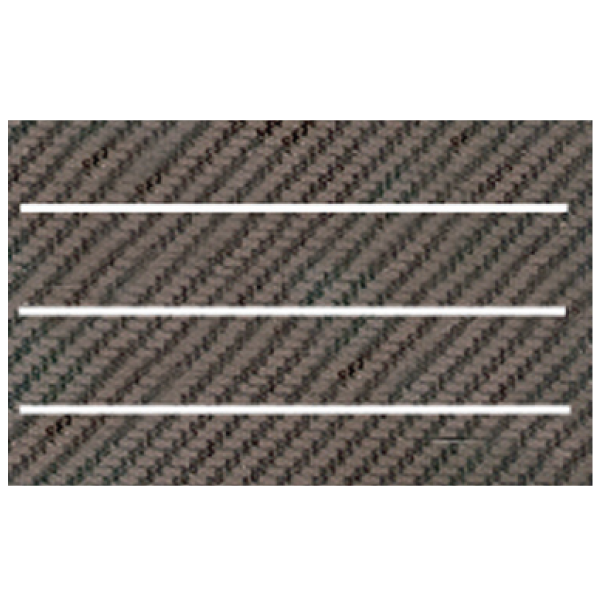

Unidirectional Sheets - Carbon & Glassfibre Features:

TFC (Thermo Formable Composite) is a versatile thermoformable carbon composite material.

TFC combines the high localised strength of carbon composite with the modelling properties of thermoplastics.  Available in unidirectional and bidirectional, the carbon fibres are interwoven with a revolutionary thermoplastic fibre that allows the material to be heated and formed at lower temperatures.

This thermoplastic material also acts as a high-strength matrix for active performance and flexibility. TFC can be simply custom formed to your mould with a heat gun or by placing the material into an oven to achieve moulding and extra reinforcement materials can be simply heated and applied to customise your brace for the patient’s needs.  Your custom lay-up is then placed in an oven under vacuum at a maximum of 430°F for 30-45
minutes to consolidate the lay-up into one piece for an individual orthotic or prosthetic solution.

TFC is also fully heat remouldable, and allows adjustable fitting just like thermoplastics. The material comes in unidirectional and bidirectional reinforcement for different structural properties with three different thicknesses and can be cut simply with scissors. Equipment such as vacuum lines, vacuum chamber, water reduction, stands and oven adaptors are also available.

Sheet size: 1000 x 600 x 2.5mm.
