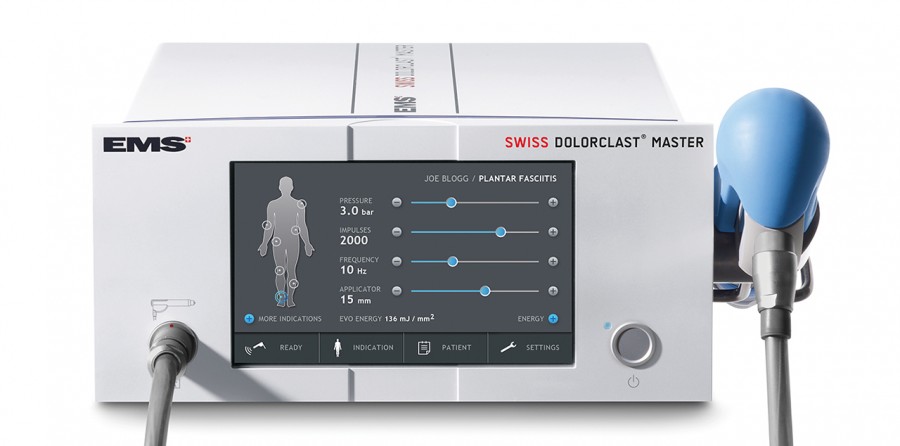

Swiss DolorClast Master
Shockwave Therapy is a non-invasive alternative to surgery, steroidal injections and oral medication.
Product Description
Swiss DolorClast Master Features:
Shockwave Therapy is a non-invasive alternative to surgery, steroidal injections and oral medication. Treat musculoskeletal pathologies quickly and effectively with the new operating concept for Radial Shockwave Therapy - from the inventor of RSWT.
-
17 Ready-to-treat protocols with preset recommended settings, pictures and video.
-
First and only device to feature an air pressure Vs energy density (ED) converter. This option automatically calculates the ED output (in mJ/mm²) corresponding to the air pressure level (in bar) chosen for the treatment.
-
Visual analogue scale option to track pain reduction throughout treatment.
-
Up to 200 logs for tailored treatment protocols.
-
Up to 3000 patients files stored with automatic treatment history recording.
-
Display of an energy metre on working screen to follow at any time the energy released to the tissues.
-
USB memory port to upgrade software and export database and statistics.
-
Password option for increased security.
-
User-friendly interface.
-
Efficiency demonstrated by scientific evidence.
-
Digital display of energy flux density.
-
Photos and videos of step-by-step demonstration of each application.
-
Capture the patient’s entire treatment history.
-
Easy access to personalised treatment settings.
-
Automatic display of treatment results.
Complete therapeutic guide of clinical data, contraindications and scientific publications for each application.
Immediate indication of energy flux density.
Immediate indication of energy flux density.
EVO Blue Handpiece:
-
High-precision smart-lock piston with patented valve system - for unprecedented energy flux densities at all frequencies.
-
Easy handpiece revision by quick replacement of smart-lock piston - much faster, more precise and safer than (self-) assembly of single spare parts.
-
Large treatment area of 36mm.
Indications for Use:
-
Tennis elbow.
-
Subacromial pain syndrome.
-
Greater trochanteric pain syndrome.
-
Patella tip syndrome.
-
Medial tibial stress syndrome.
-
Insertional Achilles tendinopathy.
-
Midbody Achilles tendinopathy.
-
Plantar fasciitis.
-
Calcifying tendonitis of the shoulder.
-
Primary and secondary lymphoedema.
-
Peyronie’s disease.
-
Acute and chronic soft tissue wounds.
-
Cellulite.
System Contains: Swiss DolorClast Master console, Evo Blue handpiece, 15mm and 36mm interchangeable contact heads (applicators), contact gel, cart, and external compressor. Patient marketing material also included.
Technical Specification:
Frequency | 1-20 Hz. |
Air Pressure Range | 1.5-4.0 bar. |
Impulses Range | 500-10,000. |
Weight | Approx 6.4kg |
Dimensions (L x W x H) | L356mm x W391mm x H136mm. |
Classifications | 93/42 EEC: class II b Medical Device. |
