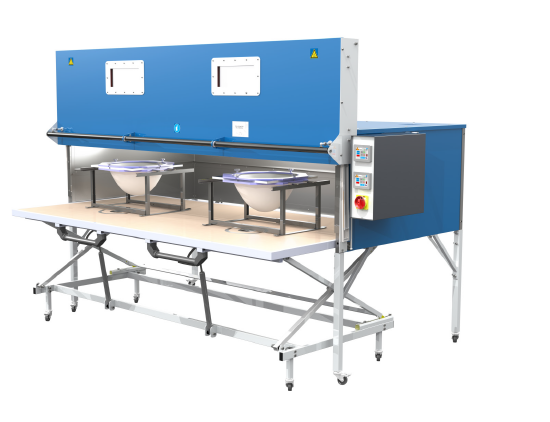

Infrared Dual Oven
Double your O&P workshop productivity, in an instant with this innovative oven.
• Easy operation by central touch panel.
• Precise thermostat control by measuring the material temperature.
• Timer feature.
• Ramp feature for slow heating processes (e.g. Pre-Preg processing).
• User-defi ned heating process memory.
• Optimized heat insulation of the oven housing.
• A heated area of 2140 x 1040 mm.
• Double thermostat controller.
• Removable divider.
Infrared Dual Oven Benefits:
- Allows you to process materials with different temperature requirements at the same time.
- Never burn your plastic again.
- Have absolute control over the surface temperature of the material.
- Allows you to heat larger material sheets.
- Two sheets of 1x1 meter or two Blister-forming trays can be heated separately.
- Space saving sliding door for all ovens with Roll-about tray.
- An oven which is instant on, which needs no preheating time and does not overheat and burn materials.
|Type:||IR2102 - DUAL - Infrared Oven for the O&P field including movable Roll-about tray Unit with DUAL temperature control and removable dash panel. Suitable either for heating 2m x 1m or independent 2x 1m x 1m.|
|Footprint:||approx. 3,1m² / oven housing movable on casters|
Outside: W 2400 mm - D 1240mm - H 1300mm.
Total height with door opened: 1750mm.
Inside: W 2100mm - D 1090mm - H 500mm.
|Roll-about tray:||Independent, 4 locking casters, locking gas shock lift adjustment - locks at any height, Single-hand operation|
|heating range:||W 2040 x D 1040 mm|
|Lift range:||710 mm - 940 mm|
|Power supply:||400V / 50/60Hz / 3 Phase / (32 Amp. CEE) / total capacity 12,9 kW, Heating 28 Infrared-Quartz-tubes with reflector. Dual zone switching (2x 14)|
|Temperature reading:||Opto-elektronic IR-measuring unit Measuring of the material´s surface temperature!|
|Temperature control:||DUAL Digital PID-Controller, infinitely adjustable from 30°C to 250°C (display in °F available). DUAL SPS controller with 3,5“ Touch panel, showing SET and CURRENT temperature, timer- and Heating-ramp feature, multi language user interface, software updates available via USB port|
|Door mechanism:||Space saving vertical movement, gas shock (2x) assisted, ball bearing guided, Double-pane viewing window.|
|Illumination:||4 x 25 watts|
|Colour/Farbe:||Inside stainless steel, Outside structural effect paint blue/light grey RAL 5017/7035.|
