Bidop 3 Vascular Handheld Doppler, Smart V-Link Software & USB Cable

For professional presentation and hard copy. Download waveforms and results previously saved on your Doppler - no need to be near the computer during testing.

£1,770.00

Product Description

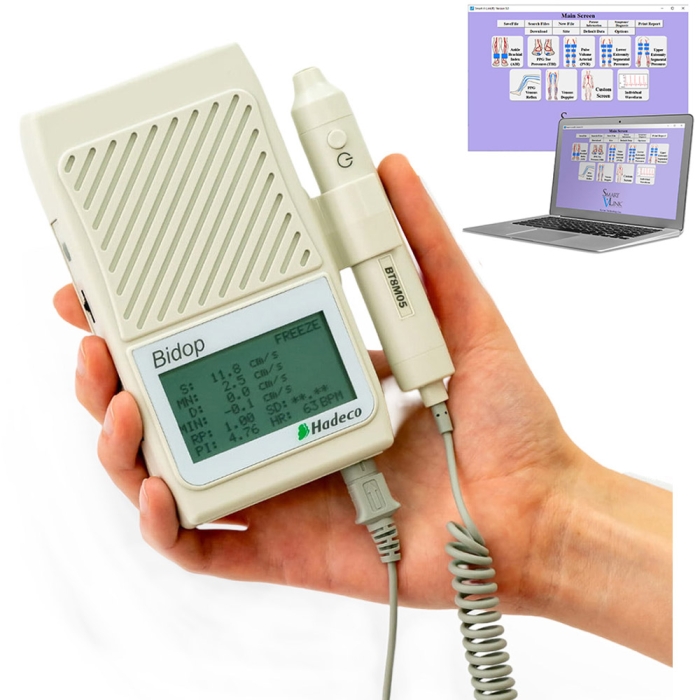

Bidop 3 Vascular Handheld Doppler

Bidop 3 Vascular Handheld Doppler, Smart V-Link Software & USB Cable Features & Benefits:

  • LCD screen displays real-time waveforms, numerical data and heart rate.
  • MENU shows various mode settings for optimal measurement.
  • Testing capabilities: Ankle Brachial Index (ABI), PPG toe pressures/ toe Brachial Index (TBI), Segmental Pressure studies, Venous Reflux, Venous Compression.
  • 30 waveform memory.
  • Convenient probe activation button (On/Off) freezes waveform and numerical data for notation.
  • Battery life: Approx. 2.5 hours
  • Mode settings: Memory, Waveform, Direction, Time scale, Others
  • External outputs: Headset and USB port
  • Audible speaker with volume control.
  • Total weight: 280 g
  • Complies with Medical Device Directive (Class IIa) 93/42/EEC Regulation 2007/47/EC and EC-60601-1 Electrical standards.
  • Warranty: 2 years for the doppler and 1 year for the probe.

Clinical applications:

Ankle Brachial Index (ABI), Peripheral Vascular Procedures, Segmental Studies, Digit Waveforms & Systolic Pressures, Venous Compression Studies, PPG Venous Reflux, PPG Toe Pressures & Toe Brachial Index (TBI).



Accessories included:

Carrying case

1 Doppler Probe (default is 8 MHz (NV3507); if different please let us know at ordering point)

Tube of ultrasonic gel

9-V battery

Operator’s manual





Technical Specifications:

Power:

DC 9-V Alkaline Battery. Approx. 2.5h

Automatic shut off - No Signal:

2 minutes.

Freeze:

5 Minutes.

Others:

10 Minutes.

Waveform Memory:

30 Waveforms.

Dimensions:

W 78mm x D 141mm x H 27mm

Speaker output:

300mW or more.

Frequency:

80/200Hz to 5kHz.

LCD Display:

128 x 64 dots.

External Outputs:

Probe & USB port.

Separate capabilities (not included):

Can be used with PPG probe (NV3511) to analyse venous flow and toe pressures and with FAST Sphygmomanometer for indirect measurement of arterial blood pressure (NV3521A).

Download Smart-XT-Link6 Vascular software (NV3510) for waveform frequency analysis and electronic reports. Smart-XT-Link6 Vascular software creates PDF & DICOM compatible files that easily integrate into your HER or PACS system.



Smart V-Link Software

For professional presentation and hard copy. Download waveforms and results previously saved on your Doppler - no need to be near the computer during testing.

  • Runs on any Windows based PC.
  • Formally supporting Windows 10, required system.
  • Site screen added for registering site and test names for Doppler(s) to allow you to perform SVL testing without connecting computer.
  • FFT analysis available with latest Smartdop 45 and ES-100V3.
  • Volume flow calculations available by entering vessel diameter.

Product Features:

  • ABI, TBI, and arterial blood flow velocity.
  • Fully auto-gain controlled waveform by computer.
  • Real-time vascular waveform display.
  • Data storage for future reference.
  • Standardised testing modules for easy operation and documentation.
  • FFT analysis available with ES-100V3, Smartdop 45.
  • Auto-freeze/decision/save for expert mode.
  • Waveform data download for Dopplers supporting download capability.
  • Customised screen with suitable names & number of site.
